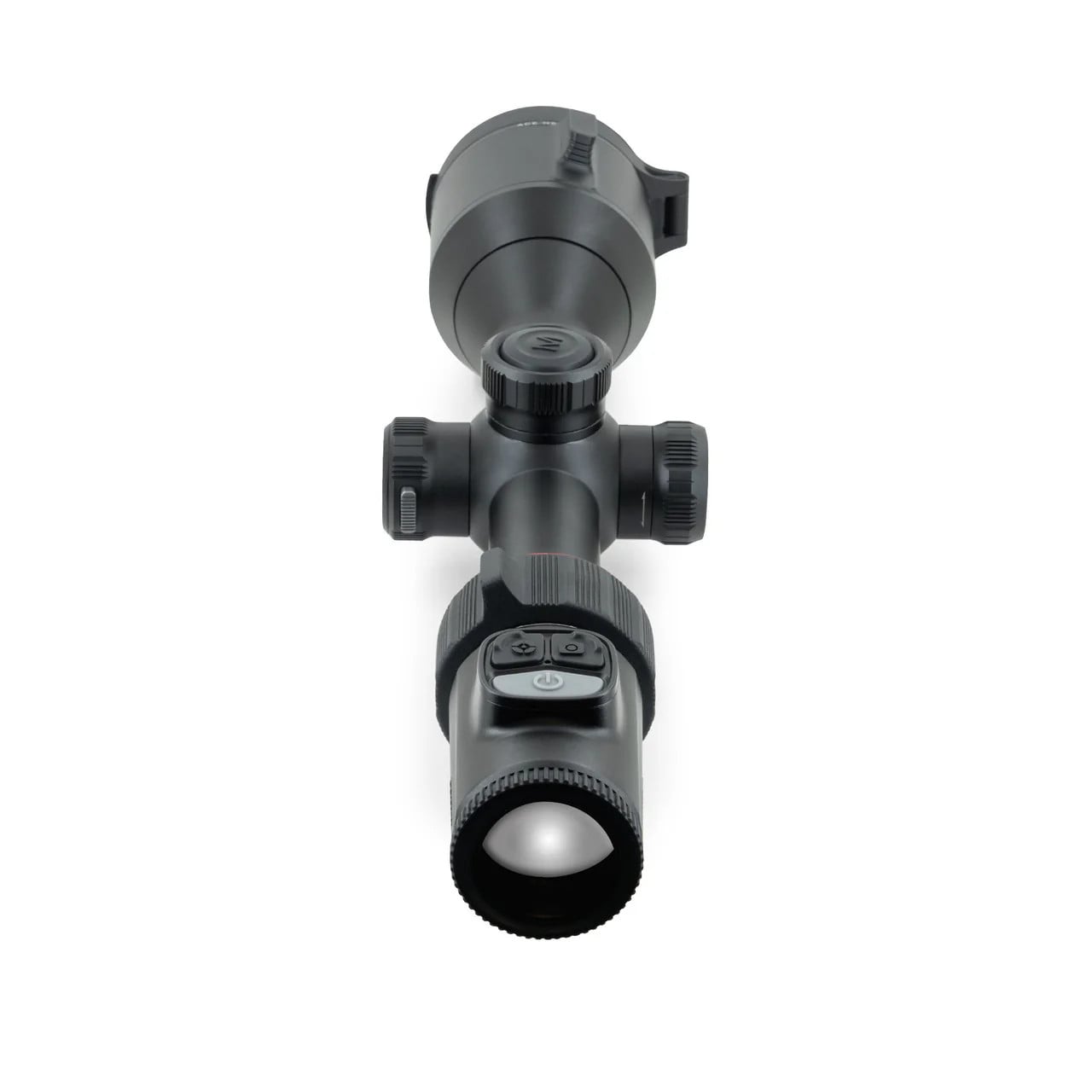

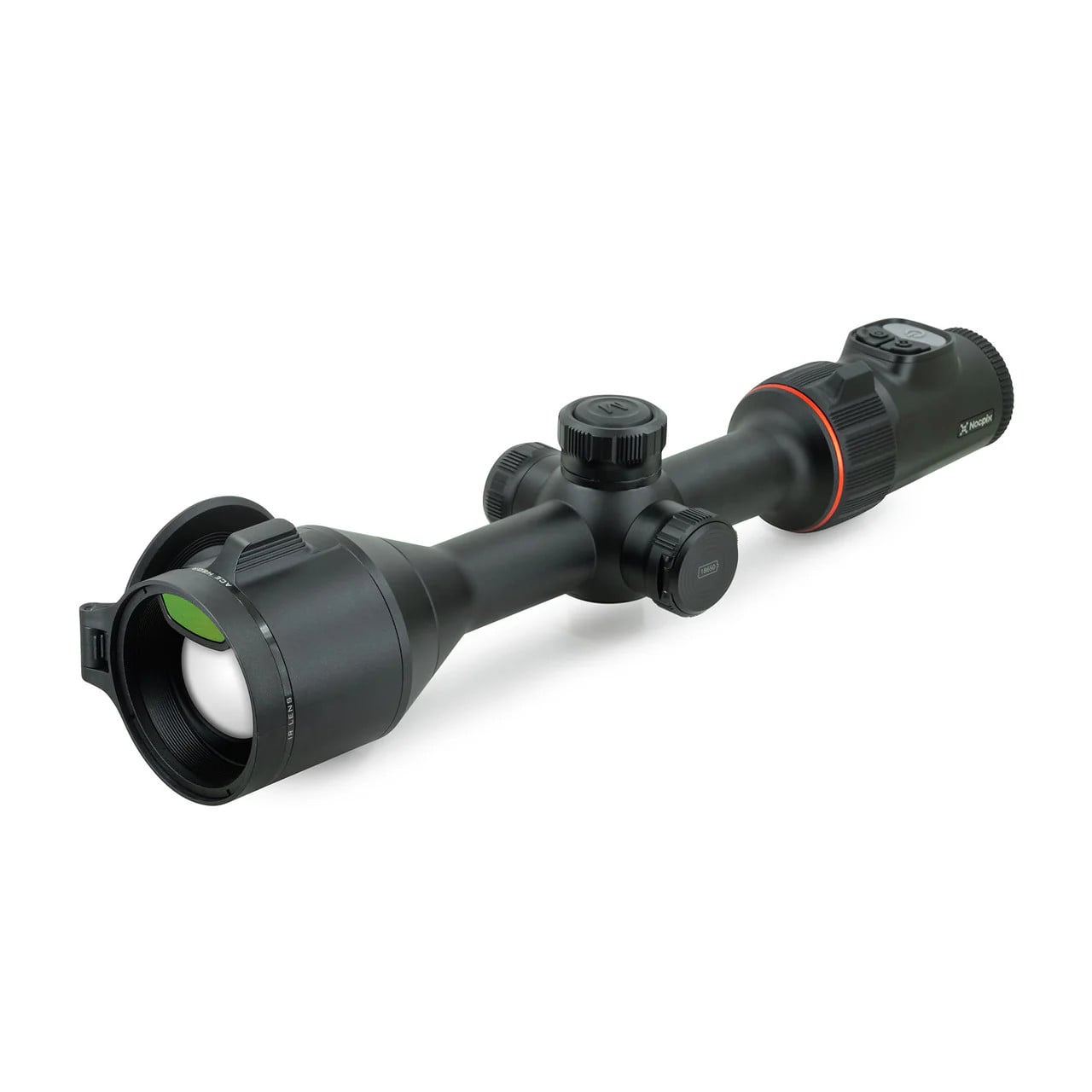

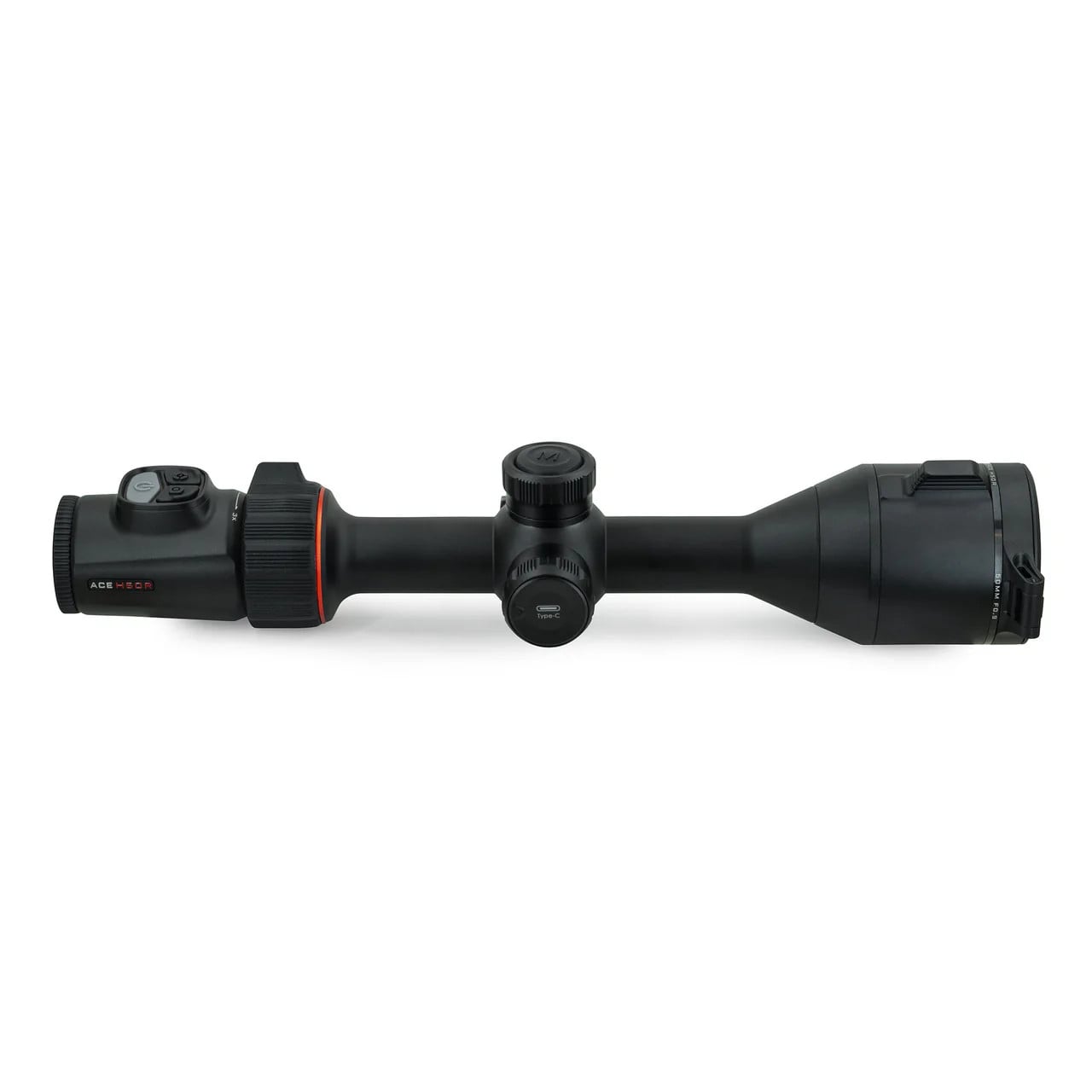

The ACE is built around the idea of combining leading user-requested features in a streamlined optic that balances advanced capability with ease-of-use in the field. Designed to feel like a traditional day optic, the ACE is compatible with bolt action or semi-automatic rifles using standard 30 mm mounts and rings. The combination of an internal USB-C charging battery and a removable 18650 style rechargeable battery allows users to hot-swap batteries in the field to run indefinitely. A 1-3x ocular magnifier provides optical magnification of the 2560x2560 round AMOLED display inside the eyepiece. The Vision+ system pairs this high resolution display with a <18 mK NETD sensor for an incredibly detailed and precise image.

• A 1-3x optical ocular magnifier provides additional magnification of the display without any reticle shift or digital zoom
• High-contrast round 2560x2560 AMOLED display provides increased clarity and detail
• Simplified controls offer improved ergonomics and a better user experience in the field
• Uses common 18650 style rechargeable batteries
• Charge through the unit with a unique lock-out USB-C port design

• model: ACE L35

• Thermal sensor: 384x288 & 12μm

• NETD, mK: ≤ 18

• Frame rate, Hz: 60

• Objective lens, mm:  35 F0.9

• Field of view(H×V), °/m@100m:  7.5x5.7 /13×10

• Magnification, ×: 3~16

• Ocular zoom, ×: 1~3

• Detective range, m(Target size:1.7m×0.5m, P(n)=99%):  1800

• Exit relief, mm: 50

• Exit pupil diameter, mm: 8

• Diopter, D: -5~5

• Type: 1.03inch AMOLED

• Resolution: 2560x2560

• Battery: Built-in 4000mAh & 18650 battery

• Max. operation time, (t=22℃)h: 7

• LRF ranging distance, m

• Ballistic calculation

• Photo & Video & Audio recording: Yes

• Memory capacity, GB: 64

• WIFI & APP: Yes

• Weight, g(with battery): 1050

• Dimension, mm: 350×90×62
