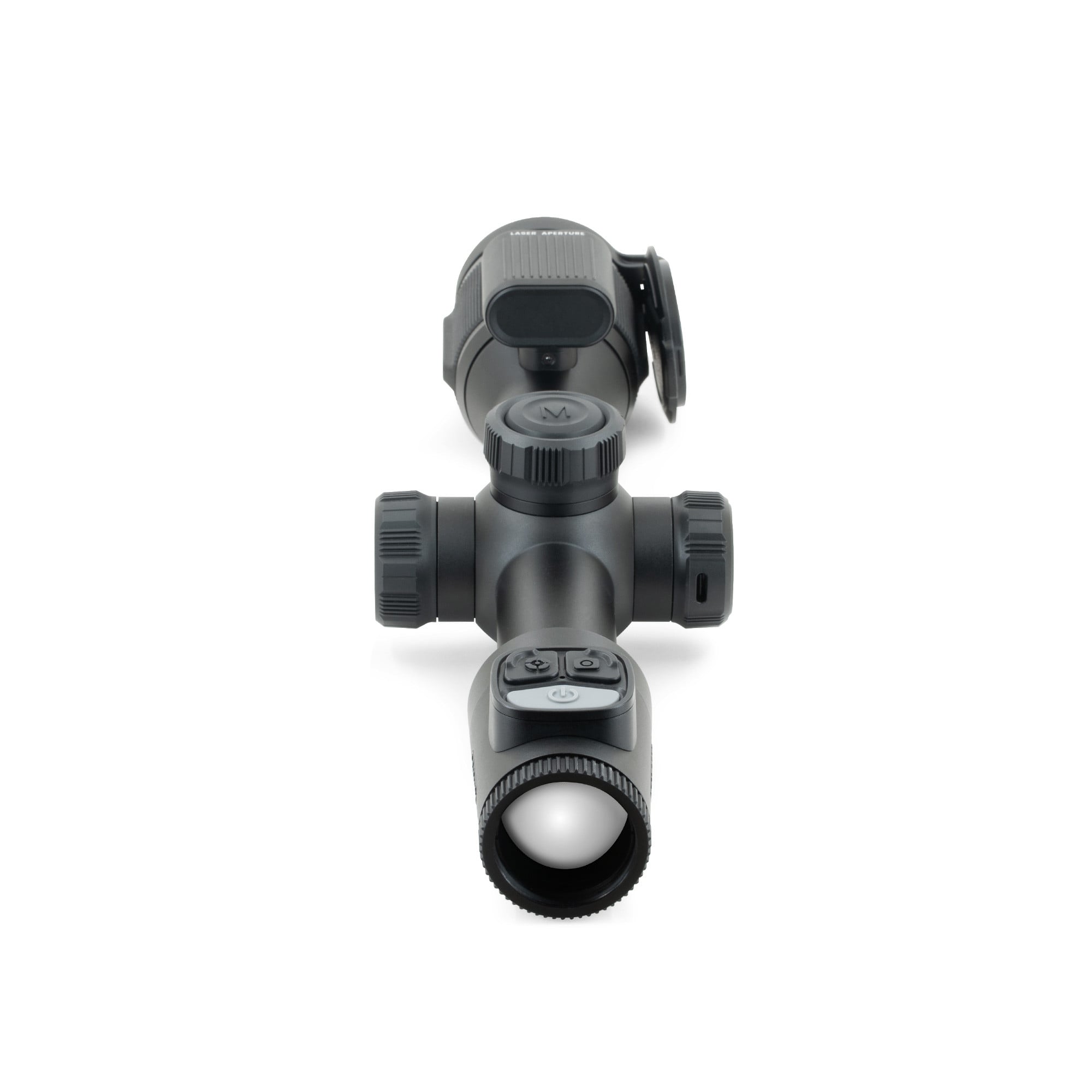

Nocpix BOLT P25R Thermal Weapon Sight

New for 2025, the Nocpix BOLT P25R delivers reliable thermal performance in an affordable, field-ready package. Designed for hunters and shooters stepping into thermal optics, the P25R features a 256×192 12 μm sensor, 25 mm F1.0 lens, and built-in laser rangefinder with ballistic calculator. It mounts easily using standard 30 mm scope rings, providing compatibility with bolt-action and semi-auto rifles. A dual power system—featuring an internal 5000 mAh rechargeable battery and removable 18650 cell—keeps you running up to 12 hours. With a crisp 1024×768 AMOLED display and intuitive controls, the BOLT P25R offers dependable performance, simplicity, and value in one compact optic.

Key Features

• 256×192 12 μm thermal sensor with ≤20 mK sensitivity
• Built-in laser rangefinder (up to 1,200 m)
• Integrated ballistic calculator for accurate holds
• Dual battery system: internal 5000 mAh + 18650 auxiliary battery
• Up to 12 hours of operation at 22°C
• 1024×768 AMOLED display for detailed imagery
• Photo, video, and audio recording with 32 GB storage
• Wi-Fi connectivity with mobile app support
• Uses standard 30 mm scope rings
• Lightweight and rugged for field use
• Backed by 5-year warranty and U.S.-based support

Specifications

• Model: P25R
• Thermal Sensor: 256×192, 12 μm
• NETD: ≤20 mK
• Frame Rate: 50 Hz
• Objective Lens: 25 mm F1.0
• Field of View (H×V): 7.0°×5.3° / 12.3×9.2 m @100 m
• Magnification: 3.5×–14×
• Detection Range: 1,300 m (Target size: 1.7×0.5 m, P(n)=99%)
• Eye Relief: 50 mm
• Exit Pupil Diameter: 10 mm
• Diopter Adjustment: -5 to +5 D
• Display Type: 0.39" AMOLED
• Display Resolution: 1024×768
• Battery Type: Built-in 5000 mAh + 18650 rechargeable
• Max Operation Time: 12 hours (at 22°C)
• LRF Ranging Distance: 1,200 m
• Ballistic Calculation: Yes
• Photo / Video / Audio Recording: Yes
• Recoil Activated Video (RAV): –
• Internal Memory: 32 GB
• Wi-Fi & App: Yes
• Weight (with Battery): 870 g
• Dimensions: 375.7 × 91.6 × 75 mm
• Mount Compatibility: Standard 30 mm rings
• Housing Material: Durable Alloy
• Operating Temperature: -4°F to 122°F
• Warranty: 5 years
