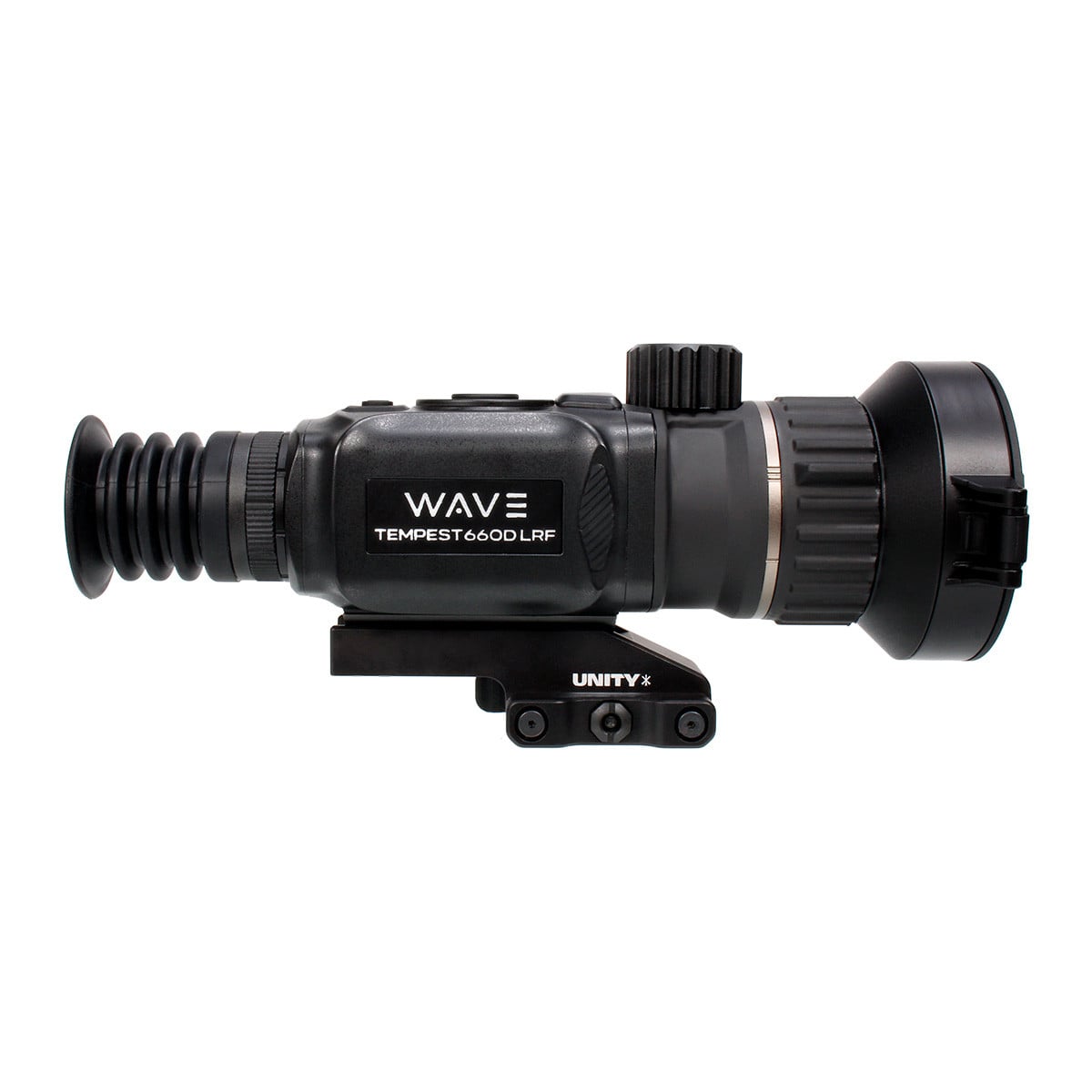

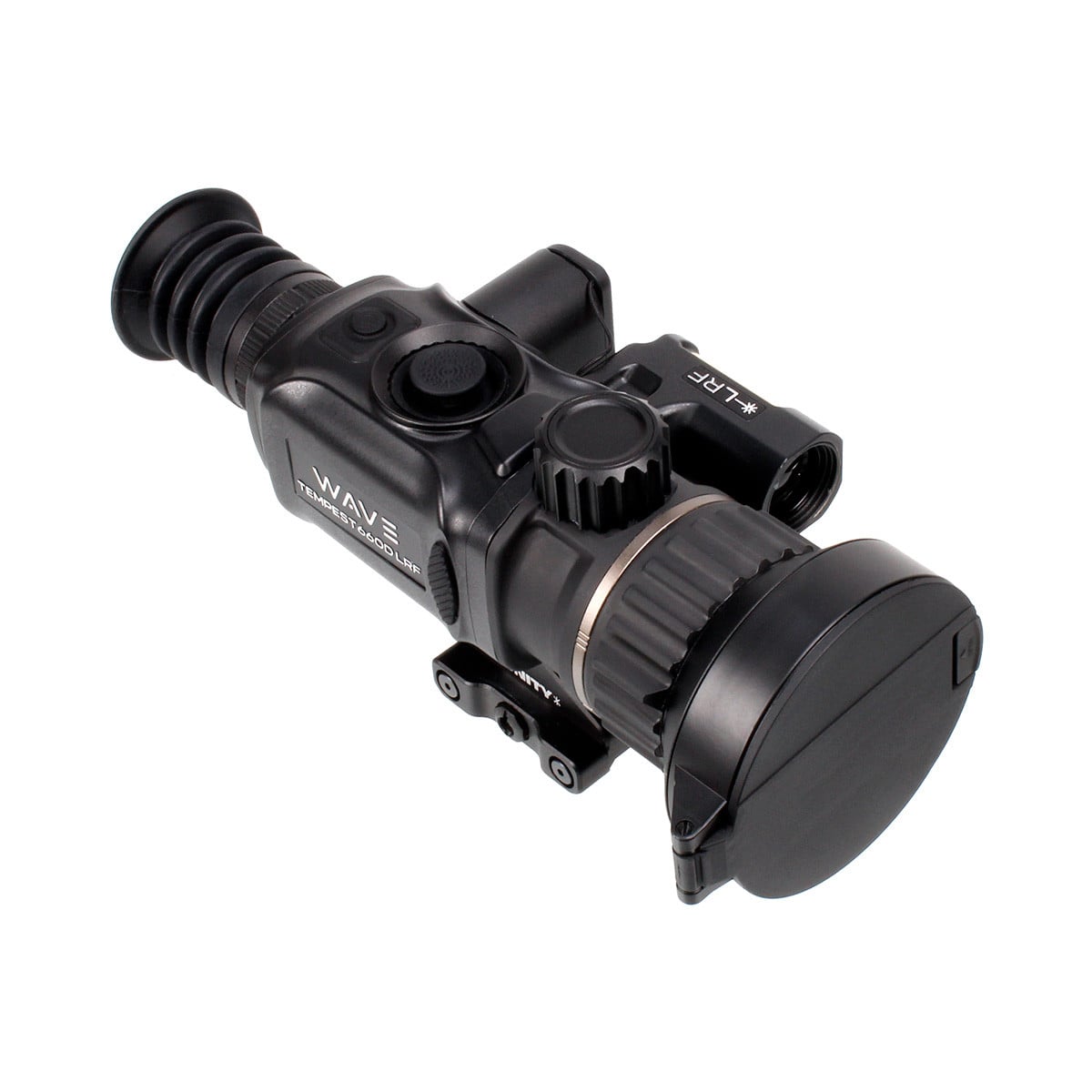

WAVE TEMPEST 660D LRF Advanced Thermal Rifle Scope
The TEMPEST 660D LRF delivers high-end performance with a 640x512 resolution, 12-micron thermal sensor and sub-18mK NETD. Equipped with a Class 3R laser rangefinder and automatic ballistic compensation, it’s designed for shooters who demand precision and reliability in the field.
It features a dual-lens 60mm objective (60mm and 20mm), offering a 3.4x base magnification and up to 13.2x digital zoom. Built for real-world use, it includes recoil-activated recording, picture-in-picture mode, multiple reticle designs, and over 13 hours of runtime. Rugged, simple to operate, and packed with functionality.
Key Features
- 640x512 thermal resolution with 12-micron pixel pitch
- Sub-18mK NETD for superior image clarity
- Dual-lens 60mm objective (60mm/20mm)
- Class 3R laser rangefinder with 1300-yard max range
- Ballistic calculator (drop compensation to 600 yards)
- 3.4x base magnification at 60mm
- Up to 13.2x digital zoom (smooth or rapid)
- HD AMOLED display (1024x768)
- Picture-in-picture mode
- 6 color palette modes and 4 display hue adjustments
- Recoil-activated video recording
- Save up to 5 gun profiles with labeling
- Over 13-hour battery life with dual 18650s
- IP67 waterproof rating
- Specifications
- Thermal Sensor: 640 x 512
- Sensor Pixel Size / Frame Rate: 12 Micron / 50 Hz
- Objective Lens Diameter: 60 mm (Dual Lens 60mm/20mm)
- NETD: <18mK
- Field-of-View: 410’ at 1000 Yards (1x) and 380’ at 1000 Yards (3.4x)
- Base Level Magnification: 3.4x (at 60mm)
- Digital Magnification: 3.4x to 13.2x (Smooth or Rapid)
- Display Type/Resolution: HD AMOLED / 1024 x 768
- Display OLED Adjustment: Yes with 4 Hue Options (Grey, Blue, Purple, Red)
- Color Palette Modes: 6 (White, Black, Red, Green, Golden, Violet)
- Picture-in-Picture (PIP): Yes
- Recoil Activated Recording: Yes with Sensitivity Threshold Adjustment
- Hot Tracking: Yes
- Outline Mode: Yes
- Reticle Design Options: 8 (Plus a “No Reticle” Option)
- Reticle Color Options: Black or White with Polarity Reversal Option
- Reticle Illuminated Dot: Yes, 4 Designs Feature Center Dot Illumination
- Reticle Center Dot: 3 Illumination Options (Red, Blue, Green)
- Reticle Focal Plane Options: Yes (Front Focal or Second Focal)
- Laser Class: Class 3R
- Laser Ranging Distance: 1300 Yards (Max Expected for Reflective Target)
- Ballistic Calculation: Yes (Automatic Drop Compensation to 600 Yards)
- Multiple Gun Profiles: Yes (Save up to 5 Different Zeros)
- Gun Profile Nicknaming: Yes (Caliber Labeling and Zero Distance)
- Detection Range: Up to 2900 Yards
- Start-Up Time (Cold Start): 3 Seconds (Logo Appearance to Functional Use)
- Auto Shutdown Battery Saver: Yes (Off, 30, 60, 90 Minutes)
- Media Recording: Yes (Photo, Video, and Audio with On or Off)
- Media File Management: Yes (On-Board Viewing and File Deletion)
- WiFi and Hot-Spot Equipped: Yes
- Battery Type: (2x) 18650 Protected
- Expected Battery Life: 13+ Hours (w/3500 mAh Battery & WiFi Off @ 78°F)
- Recoil Rating: 6,000 J (300 Win Mag Suggested Max)
- Nitrogen Purged: Yes
- Scope Length: 9.9”
- Weight: 36 oz. (Without Batteries)
- Waterproof Rating: IP67
